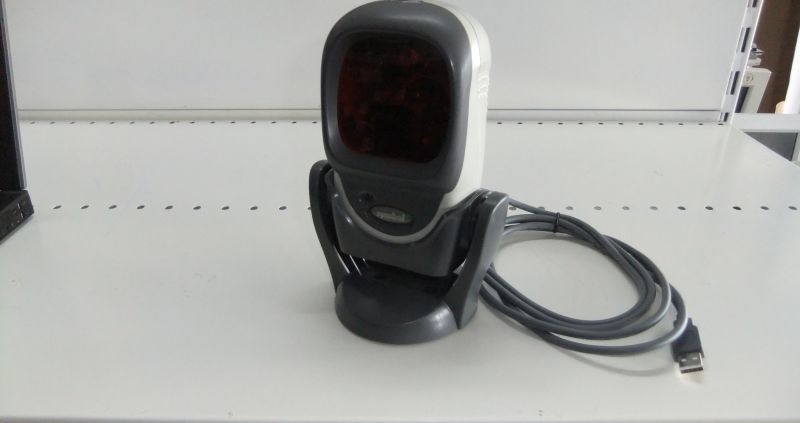

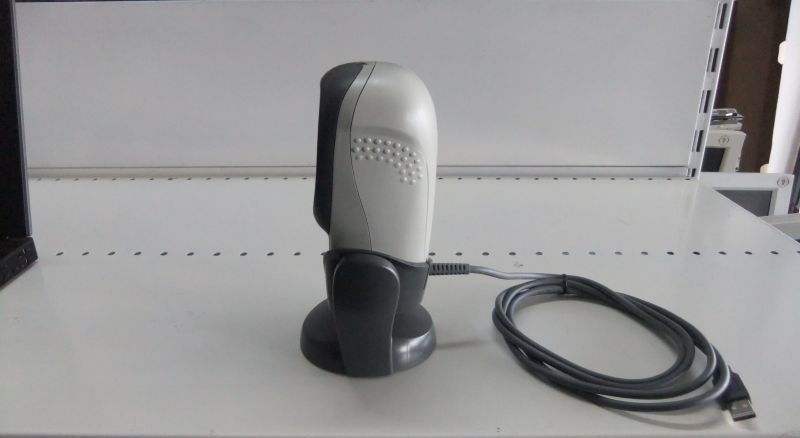

Symbol 9208

Symbol 9208 + Оригинален USB кабел (new)

Dimensions:

(without stand) 5.51 in. H x 3.49 in. W x 2.96 in. D

14 cm H x 8.8 cm W x 7.5 cm D

Dimensions:

(without adjustable stand) 7.18 in. H x 4.83 in. W x 3.73 in. D

18.24 cm H x 12.27 cm W x 9.47 cm D

Weight: Scanner only: 10.2 oz/320 g

With adjustable stand: 21.5 oz/670 g

Power Source: Depending on host:

* Host power

* External power supply

Voltage: 5.0 VDC +/- 10%

Nominal Current: 390 mA

Power: 2 Watts

Mounting Options: Adjustable multi-mount stand

Color: Cash Register White or Twilight Black

Performance Characteristics

Light Source: 650 nm visible laser diode

Roll (Tilt ): 1 Omnidirectional: 360°

Single scan line: +/- 40°

Pitch: 2 Omnidirectional: +/- 50°

Single scan line: +/- 60

Skew (Yaw):3 Omnidirectional: +/- 50°

Single scan line: +/- 50°

Print Contrast: 25% minimum reflective difference

Scan Patterns: Omnidirectional: 20 interlocking lines, 5 scan angles, 4 lines per angle rastering @ 5Hz Single scan line capability

Scan Rate: Omnidirectional: 1500 scans per second

Single scan line: 75 scans per second

Depth of Field: 0-9 in./0-22.9 cm @ 13 mil (100 % UPC/EAN)

Nominal Working Range: 5 mil (38%) 1-2.5 in./2.5-6.4 cm

7.8 mil (60%) 0-6 in./0-15.2 cm

10.4 mil (80%) 0-7.5 in./0-19 cm

13 mil (100%) 0-9 in./0-22.9 cm

Width of Field: 1.6 in./40 mm @ Face

6.7 in./170 mm @ 9 inches

Minimum Resolution: 5 mils

Decode Capability: UPC/EAN/JAN, UPC/EAN w/ Supplementals, UCC/EAN128, Code 128, ISBT 128, Code 39, Trioptic Code 39, Interleaved 2 of 5, Discrete 2 of 5, Code 93, Code 11, Codabar, MSI, RSS variants

Interfaces Supported: USB, RS232, IBM® 468X/9X, Keyboard Wedge, Wand and Synapse™ (allows connectivity to virtually every POS host type)
